Description
The new TP9KACX Two Post, Clear Floor & Floor Plate Lifts have been redesigned to now include standard features with Single Piece Column construction, Internal Hose routing, Padded Overhead Shut-Off Bar with Kill Switch, Reduced overall Width, Drop-In Adjustable Swivel Pads with Height Adapters & Rubber Door Guards, making these models one of the bestTwo Post Lift values in the industry!
Features
- 9,000 lbs capacity
- ASymmetric Arms
- Rubber Door Guards
- Chain Drive Cylinders
- Dual Point Lock Release
- Auto Arm Restraint System

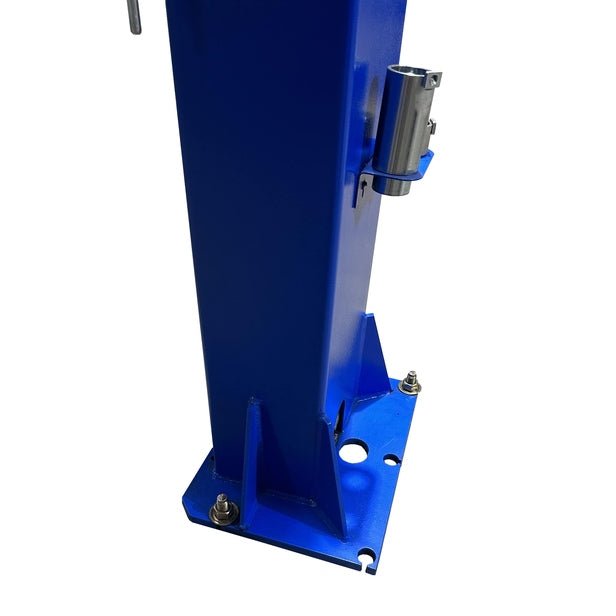

- Single Piece Column
- Internal Hose routing
- Low profile Spin Up Lift Pads
- Stackable Adapters Included
Specifications
| Lift Model | TP9KACX |
| Capacity | 9,000 lbs. |
| Height Overall | 142-7/8″ |
| Width Overall w/ Power Unit | 138″ |
| Max Lift Height | 72″ |
| Width Between Columns | 113-5/8″ |
| Min. Pad Height | 4″ |
| Drive Thru Clearance | 96″ |
| Lifting Speed | 50S |
| Asymmetric / Symmetric | Asymmetric |
| Clear Floor / Floor Plate | Clear Floor |
| Short Arm Reach min/max | 29″-41″ |
| Long Arm Reach min/max | 37″-57″ |
| Narrow Bay Setting | NA |
| Max Load Per Arm | 2,250 lbs. |
| Ship Weight | 1,370 lbs |
| Power | 220V 20 AMP 1 PH |
