Tuxedo 12,000 lb Two Post Floor Plate Lift
Introducing the New TP12K & TP15K ‘X HD Series Two Post Lifts!! The new TP12KFX & TP15KCX Two Post Floor Plate & Clear Floor Lifts have been redesigned and now come standard with Low profile Drop-In Adjustable Swivel Pads with Height Adapters, Internal Hose Routing, Padded Overhead Shut-Off Bar with Kill Switch, reduced overall Width, & Rubber Door Guards, making these models some of the best heavy duty Two Post Lift values in the industry!
Features
- 12,000 lbs Capacity
- Symmetric Arms
- Rubber Door Guards
- Chain Drive Cylinders
- Dual Point Lock Release
- auto Arm Restraint System
- Spin Up Lift Pads
- Stackable Adapters Included
- Internal Hose routing

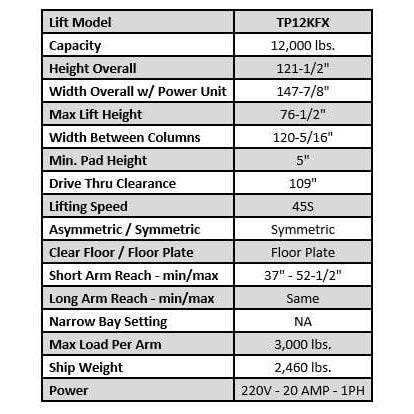

Specifications
| Lift Model | TP12KFX |
| Capacity | 12,000 lbs. |
| Height Overall | 121-1/2″ |
| Width Overall w/ Power Unit | 147-7/8″ |
| Max Lift Height | 76-1/2″ |
| Width Between Columns | 120-5/16″ |
| Min. Pad Height | 5″ |
| Drive Thru Clearance | 109″ |
| Lifting Speed | 45S |
| Asymmetric / Symmetric | Symmetric |
| Clear Floor / Floor Plate | Floor Plate |
| Short Arm Reach min/max | 37″ 52-1/2″ |
| Long Arm Reach min/max | Same |
| Narrow Bay Setting | NA |
| Max Load Per Arm | 3,000 lbs. |
| Ship Weight | 2,460 lbs |
| Power | 220V 20 AMP 1 PH |
