HDS14LSXE 14,000lb Alignment Lift by BendPak

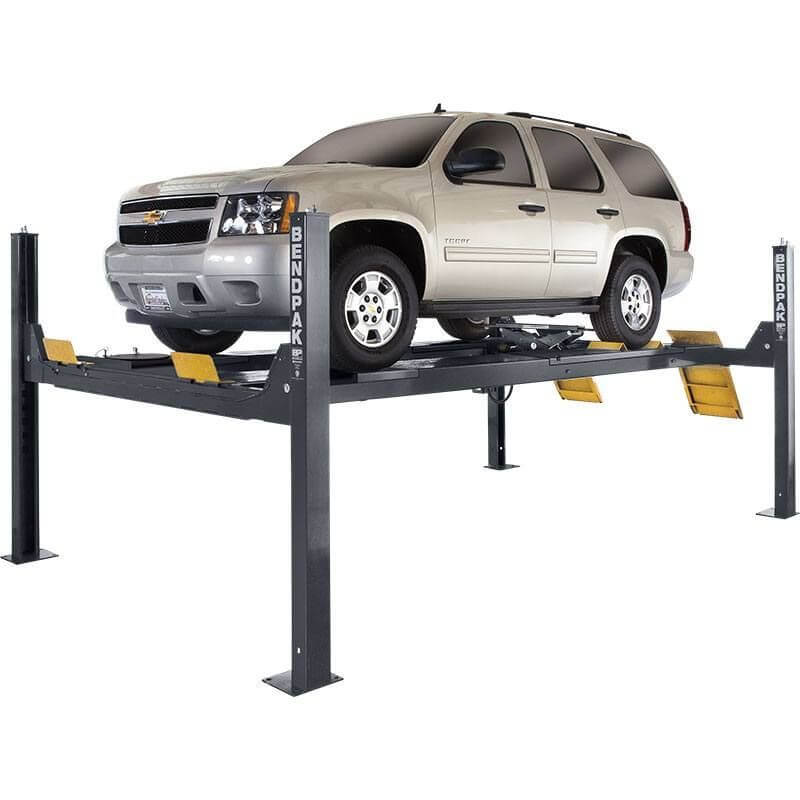

Looking for a lift that does it all? The BendPak HDS14LSXE Alignment Lift is your answer! With an impressive 14,000 lbs. lifting capacity and a 229-inch runway length, this powerhouse makes aligning even the largest trucks and vans a walk in the park. It features galvanized front turn plates and multi-caster slip plates in the rear, so your alignment’s as smooth as can be—no hiccups, no delays.
The HDS14LSXE is engineered for safety and convenience with spring-loaded safety locks, a pneumatic lock release, and a secondary lock system. Those low-clearance vehicles? No problem! The extended approach ramps ensure they’re easy to load, and with fully enclosed cables and hoses, you won’t have to worry about wear and tear. Want even more power? Add optional rolling bridge jacks for a no-hassle wheel and brake service.
Alignment Lift HDS14LSXE Specification
- Lifting Capacity: 14,000 lbs. (6,350 kg)
- Max Front/Rear Axle Capacity: 7,000 lbs. (3,175 kg)
- Runway Length: 229 inches (5,817 mm)
- Min. Runway Height: 7.5 inches (191 mm)
- Max. Lifting Height: 77.5 inches (1,969 mm)
- Overall Width: 130 inches (3,302 mm)
- Drive-Thru Clearance: 98 inches (2,489 mm)
- Alignment Capacity:
- Min. 4-Wheel Alignment: 89 inches (2,261 mm)
- Max. 4-Wheel Alignment: 156 inches (3,962 mm)
- Max. 2-Wheel Alignment: 182 inches (4,623 mm)
- Locking Positions: 15 with 4-inch (102 mm) spacing
- Power Requirements: 220 VAC / 60 Hz / 1 Phase
- Shipping Weight: 3,216 lbs. (1,458 kg)
HDS14LSXE 14,000lb Alignment Lift Special Features
- ALI certified
- Extended-Length Design: Accommodates longer vehicles, such as trucks and vans.
- Built-In Alignment System:
- Includes:
- Front Turn Plates

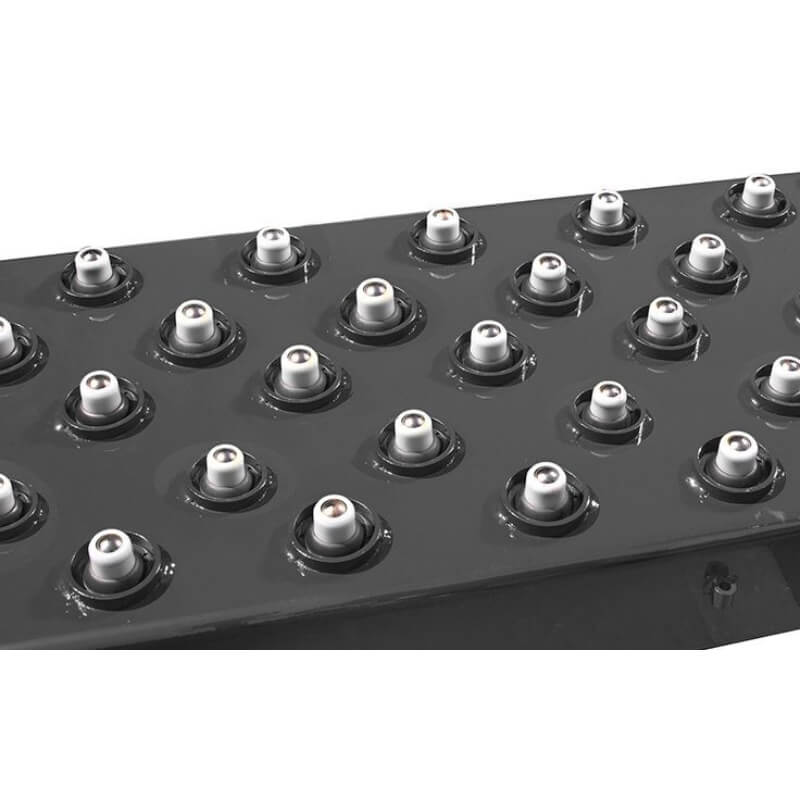

- Rear Slip Plates
- Aircraft-Quality Cables: 1/2-inch diameter stainless-steel cables ensure strength and durability.
- Dual-Hub Cable Sheaves: Oversized sheaves and 2.25″ axles reduce wear and increase lifespan.
- Electric-Hydraulic Power System: Maintenance-free and ergonomically designed for operator ease.
- Spring-Loaded Safety Locks: Engage at multiple positions for secure, adjustable lifting.
- Secondary Lock System: Prevents operation in the event of cable slack for enhanced safety.
- Integrated Components: Enclosed cables, sheaves, and hoses for protection and clean aesthetics.
- Longer Approach Ramps: Designed for easy access for low-clearance vehicles.
- Optional Rolling Bridge Jacks: Allow for additional wheel and brake service capabilities.
- Push-Button Lock Release: Simplifies lowering with simultaneous pneumatic lock disengagement.
