BendPak HD-14T 14,000lb 4 Post Lift – Extended Height

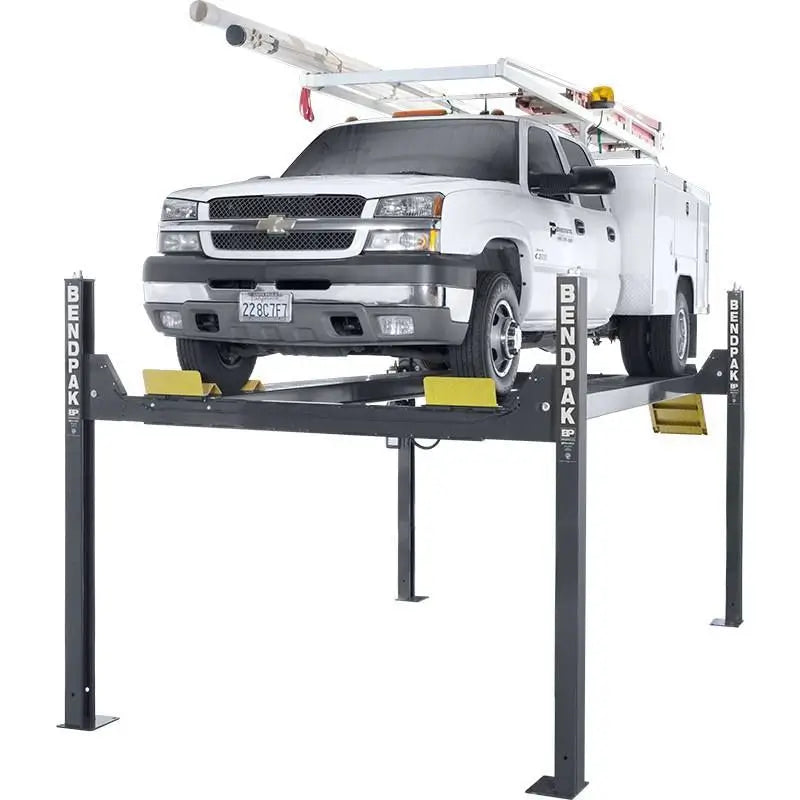

HD-14T 14,000lb 4 Post Lift by BendPak

Heavy-duty vehicles require a heavy-duty solution, and basic lifts just don’t cut it when working on trucks, SUVs, or vans. The BendPak HD-14T delivers the power and precision your shop needs with its 14,000-lb. lifting capacity and extended 82” rise. Designed for professional-grade performance, this four-post lift handles even high-profile vehicles with ease. Its 205” overall length and 195” runways make loading a variety of vehicles simple, while the built-in rail kit supports optional rolling bridge jacks for advanced repairs.

Safety and efficiency go hand in hand with this lift’s heavy-duty aircraft cables, spring-loaded locks, and flow restrictors to guarantee stability. The pneumatic safety release and electric-hydraulic power system streamline operation, letting you focus on what matters—quality service. With 17 locking positions, extra-long ramps for low-clearance cars, and a design built to last, the HD-14T turns your shop into the ultimate repair powerhouse.

4 Post Lift HD-14T Specification

• Capacity

  • Lifting Capacity: 14,000 lbs. (6,350 kg)
  • Max Capacity (Front Axle): 7,000 lbs. (3,175 kg)
  • Max Capacity (Rear Axle): 7,000 lbs. (3,175 kg)

  Rise

  • Minimum Runway Height: 7.5″ (191 mm)
  • Maximum Rise: 82″ (2,083 mm)
  • Maximum Lifting Height: 89″ (2,261 mm)
  • Time to Full Rise: 65 seconds

  Outside Dimensions

  • Overall Width: 126″ (3,200 mm)
  • Outside Length: 205″ (5,207 mm)
  • Overall Length: 233.25″ (5,924 mm)
  • Height of Columns: 100″ (2,540 mm)

  Inside Dimensions

  • Width Between Columns: 115.75″ (2,940 mm)
  • Drive-Thru Clearance: 98″ (2,489 mm)

  Runways

  • Runway Width: 20″ (508 mm)
  • Runway Length: 195″ (4,953 mm)
  • Width Between Runways: 34.5″ (876 mm) or 41.5″ (1,054 mm)
  • Runway Centerline: 57.5″ (1,461 mm) or 64.5″ (1,638 mm)
  • Outside Edge of Runways: 77.5″ (1,969 mm) or 84.5″ (2,146 mm)

  Minimum Wheelbase

  • Rated Capacity: 135″ (3,429 mm)
  • 75% Capacity: 115″ (2,921 mm)
  • 50% Capacity: 100″ (2,540 mm)
  • 25% Capacity: 80″ (2,032 mm)

  Locking

  • Number of Locking Positions: 17
  • Lock Spacing: Every 4″ (102 mm)

  Power Unit

  • Motor: 220 VAC / 60 Hz / 1 Ph
  • Noise Level: 45 dB

  Shipping

  • Weight: 2,408 lbs. (1,092 kg)
  • Shipping Dimensions: 204″ x 22″ x 30″

HD-14T 14,000lb 4 Post Lift Special Features

• 14,000-lb. lifting capacity
• Extra lift height
• Long-style approach ramps for low ground clearance vehicles
• Runways include rail-kit for optional accessories
• Single hydraulic cylinder mounted underneath runway
• Fully enclosed lifting cables, safety locks, and sheaves
• Internal anti-sway slider blocks in each column
• Pneumatic push-button safety release
• Features heavy-duty 1/2″ aircraft cable
• Safety locks enclosed in columns minimize pinch points
• Hardened-steel sheaves with self-lubricating bearings
• Multi-position safety locks in each column
• Customizable power unit location
• Approach ramps incorporate built-in rear-wheel chocks
• Independent backup slack-cable safety latches
• Runways feature non-skid surface
• Warranty:
  • 5 Year – Lift Structure
  • 2 year – Hydraulic Unit & Power Unit
  • 1 Year – Electrical and Operating Components
  • *Reasonable labor costs covered for first 12 months
