BendPak HD-75BXT 7,500lb 4 Post Boat Lift

HD-75BXT 7,500lb 4 Post Boat Lift by BendPak

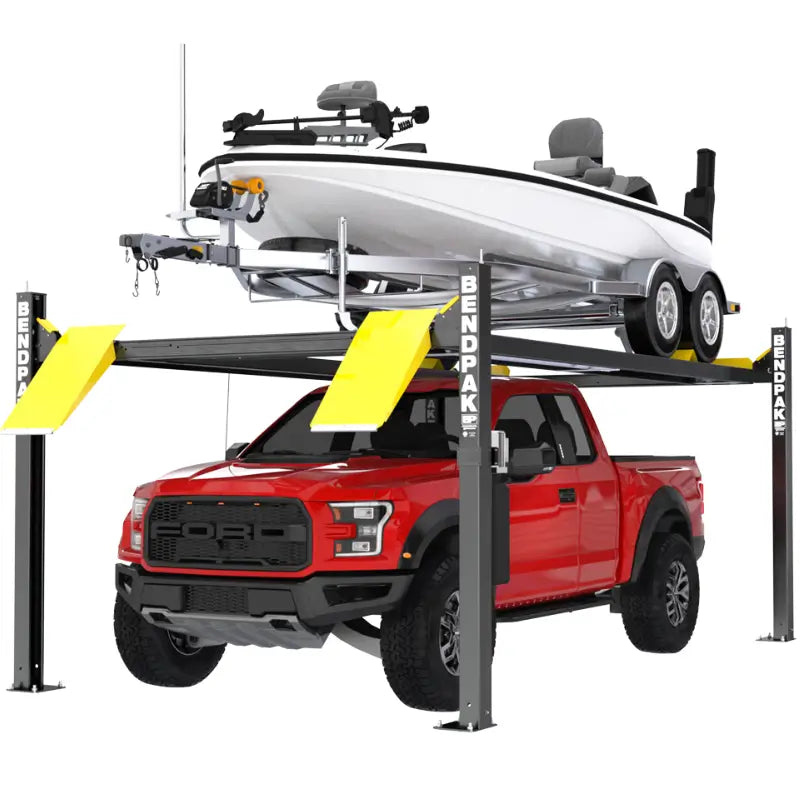

Own a boat or a vehicle? The BendPak HD-75BXT 4-Post Lift is your ultimate storage and dry-docking solution. With a 7,500-lb lifting capacity, this powerhouse protects boats from saltwater corrosion, barnacles, and rust, all while living a double life as a secure storage option for vehicles. Engineered for versatility, its adjustable runways handle boat trailers and vehicles with ease, while its rugged electric-hydraulic system and stainless-steel aircraft cables ensure smooth, maintenance-free operation.

Safety is a top priority, with multi-level locking positions, secondary slack-cable locks, and a fully integrated design that keeps critical components protected. The extended approach ramps make loading seamless for trailers and low-profile vehicles alike. Measuring an impressive 248.5 inches in overall length and featuring a drive-thru clearance of 108.5 inches, the HD-75BXT optimizes storage space for any setup. Say goodbye to costly dry-docking fees and hello to reliable, secure, and efficient storage. Invest in the HD-75BXT today and protect what matters most.

4 Post Boat Lift HD-75BXT Specification

Capacity

• Lifting Capacity: 7,500 lbs. (3,402 kg)
• Max Capacity (Front Axle): 3,750 lbs. (1,701 kg)
• Max Capacity (Rear Axle): 3,750 lbs. (1,701 kg)

Rise

• Min. Runway Height: 5″ (127 mm)
• Max. Rise: 82″ (2,083 mm)
• Max. Lifting Height: 87″ (2,210 mm)
• Time to Full Rise: 50 seconds

Outside Dimensions

• Overall Width: 133.75″ (3,397 mm)
• Outside Length: 222″ (5,639 mm)
• Overall Length: 248.5″ (6,312 mm)
• Height of Columns: 100″ (2,540 mm)

Inside Dimensions

• Width Between Columns: 122″ (3,099 mm)
• Drive-Thru Clearance: 108.5″ (2,756 mm)

Runways

• Runway Width: 19″ (483 mm)
• Length of Runways: 206.25″ (5,239 mm)
• Width Between Runways: 46.5″ (1,181 mm) or 66.5″ (1,689 mm)
• Runway Centerline: 68.5″ (1,740 mm) or 88.5″ (2,248 mm)
• Outside Edge of Runways: 87.5″ (2,223 mm) or 107.5″ (2,730 mm)

Minimum Wheelbase

• Rated Capacity: 150″ (3,810 mm)
• 75% Capacity: 130″ (3,302 mm)
• 50% Capacity: 110″ (2,794 mm)
• 25% Capacity: 90″ (2,286 mm)

Locking

• Locking Positions: 17
• Lock Spacing: Every 4″ (102 mm)

Power Unit

• Motor: 208-230 VAC / 60 Hz / 1 Ph

HD-75BXT 7,000lb 4 Post Boat Lift Special Features

• 7,000-lb. maximum lifting capacity
• High lift with short runways
• Electric / hydraulic power system
• Single hydraulic cylinder mounted underneath runway
• Internal anti-sway slider blocks in each column
• Oversized self-lubricating cable rollers
• High-speed lifting
• Features heavy-duty 3/8″ aircraft cable
• Rugged 1.25″ roller axles
• Multi-position safety locks in each column
• Adjustable lock ladders
• Push-button pneumatic safety release
• Optional Item(Sold Separately)
  • Optional 4,500-lb. capacity rolling jack available (Model RJ-45)
• Warranty
  5 Year – Lift Structure
  2 year – Hydraulic Unit & Power Unit
  1 Year – Electrical and Operating Components
  *Reasonable labor costs covered for first 12 months

BendPak HD-75BXT Documentation

  BendPak HD-75BXT Product Brochure
