Sale!

Tuxedo TP9KFX 9,000 lb Two Post Floor Plate – Symmetric

Original price was: $2,799.00.Current price is: $2,300.00. $920.00

-18%

Free worldwide shipping on all orders over $500

  • 30 days easy returns
  • Order yours before 2.30pm forΒ same day dispatch
Guaranteed Safe Checkout

Tuxedo TP9KFX 9,000 lb Two Post Floor Plate - Symmetric
Tuxedo TP9KFX 9,000 lb Two Post Floor Plate – Symmetric
Original price was: $2,799.00.$2,300.00Current price is: $2,300.00. $920.00

Please Email Us at : Info@smartautolift.us to Book an Appointment

Description

The new TP9KFX Two Post, Clear Floor & Floor Plate Lifts have been redesigned to now include standard features with Single Piece Column construction, Internal Hose routing, Padded Overhead Shut-Off Bar with Kill Switch, Reduced overall Width, Drop-In Adjustable Swivel Pads with Height Adapters & Rubber Door Guards, making these models one of the best Two Post Lift values in the industry!

Features

  • 9,000 lbs capacity
  • Symmetric Arms

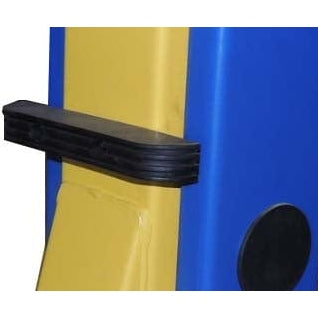

  • Rubber Door Guards
  • Chain Drive Cylinders
  • Dual Point Lock Release
  • Auto Arm Restraint System
  • Internal Hose routing
  • Low profile Spin Up Lift Pads
  • Stackable Adapters Included

Specifications

Lift Model TP9KFX
Capacity 9,000 lbs.
Height Overall 111-7/8″
Width Overall w/ Power Unit 134-58″
Max Lift Height 72″
Width Between Columns 110-3/8″
Min. Pad Height 4″
Drive Thru Clearance 101″
Lifting Speed 50S
Asymmetric / Symmetric Symmetric
Clear Floor / Floor Plate Floor Plate
Short Arm Reach min/max 31″-45″
Long Arm Reach min/max Same
Narrow Bay Setting NA
Max Load Per Arm 2,250 lbs.
Ship Weight 1,270 lbs
Power 220V 20 AMP 1 PH

Manual

Tuxedo TP9KFX 9,000 lb 2 Post Lift Manual
