Katool Tire Changer KT-T850 & Wheel Balancer KT-B700 Combo

Experience professional tire service with the Katool Tire Changer KT-T850 & Wheel Balancer KT-B700 Combo. The KT-T850 Tilt-Arm Wheel Clamp Tire Changer features an alloy steel jaw with carburization treatment for increased strength. The stainless mounting head, equipped with a plastic cover, ensures protection for the rim. The pull-type pedal control system, top-level motor, and pure copper winding provide enhanced power, faster heat dissipation, and a longer service life. The pneumatic system is safeguarded by a high-quality lubricator and effective air filtration. For North America, it supports a 110V/1ph/2.0HP motor, offering optimal efficiency. The inclusion of assist arms, a bead blast seater, and a 200mm aluminum bead breaker cylinder adds to its versatility. The KT-B700 Wheel Balancer, with its 3mm-thick steel body, all-in-one pressure sensor support, and top-level motor, ensures stability and precision. The quenched 36mm shaft thread provides high strength. Its advanced computer board, various balance modes, built-in fault diagnosis, and self-calibration program make it user-friendly. With unit selection options, high-quality integration power board, and compatibility with optional features like a wheel guard and longer shaft for wider wheels, this combo delivers efficient and reliable tire maintenance.

Features

KT-T850 Tilt-Arm Wheel Clamp Tire Changer Machine

• Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the inside of the jaw to have more tenacity and the outside harder, and use the jaw cover for protecting the rim

• The mounting head is made by stainless steel with solution treatment and interface polishing, the shape conforms to the engineering mechanics and accompanied by plastic cover for protecting the rim

• The high-quality spade cover effectively prevents the rim from being damaged

• Pull type pedal control system, easy for tire changing and maintenance

• Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer service life

• The high-quality lubricator provides reliable oil-drop and effectively filters compressed air so that the service life of the pneumatic system is extended

• For North America region it supports 110V/1ph/2.0HP motor for strongest power and better efficiency

• Equipped with assist arms

• Bead blast seater

• 200mm aluminum bead breaker cylinder

KT-B700 Wheel Balancer

• The body uses 3mm-thick steel with high strength, solid welding and low vibration

• All-in-one pressure sensor support design, both bottom and side boards are 8mm thick, and it insures that the sensor work stably with high precision

• Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer using life

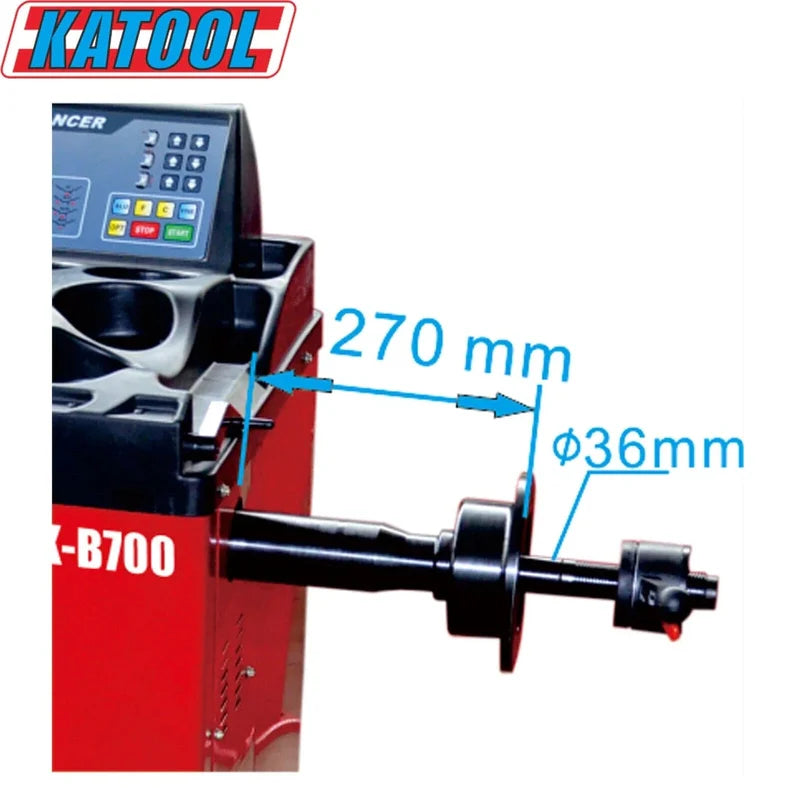

• The 36mm shaft thread is made by quenching treatment to offer high strength

• The computer board adopts advanced welding technology to make it moisture proof, dust proof and antistatic

• Various balance mode for different types of rims to provide more precision

• Built-in fault diagnosis and self-calibration program with double side calibration. No preset parameters so the users can operate with ease

• Unit selection (Ounce/Gram, MM/Inch)

• High quality integration power board, working stable and reliable

• Optional wheel guard

• Longer shaft also compatible with wider wheels

Specifications

KT-T850 Tilt-Arm Wheel Clamp Tire Changer Machine

Max Wheel Diameter:	47″/1200mm
Max Wheel Width:	15″/380mm
Outside Clamp:	14″-26″
Inside Clamp:	16″-28″
Power Supply:	110V 1PH
Motor Power:	2.0HP/1.5KW
Rotation Speed:	6.8r/min
Air Pressure:	0.8-1.0Mpa(116-145psi)
Net weight:	340KG / 750lbs

KT-B700 Wheel Balancer

Rim Diameter:	<30″
Wheel Width:	3″-12″
Wheel Diameter:	<880mm/34.64″
Balancing Speed:	180rpm
Power Supply:	120V 1PH
Motor Power:	0.25KW
Rim Center Hole Dia.:	<135mm/5.31″
Wheel Weight:	<65KG/143lbs
Balancing Accuracy:	1g
Measuring Time:	7S

Warranty

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.

A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.

Warranty Includes:
– Cylinders, power units, motors, displays, electronics, etc.
– Vehicle lifts include an additional three-year (36 months) warranty on structural components only.

Warranty Conditions:
– Claims must fall within the warranty period.
– Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
– Replacement parts will be provided at no cost, including free shipping.

Note:
– All warranty claims are subject to approval by the warranty/service department.
– Photos and/or videos of defects may be requested.
– Do not disassemble any equipment before the issue is determined.
– Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
– Labor is not included in the warranty.
