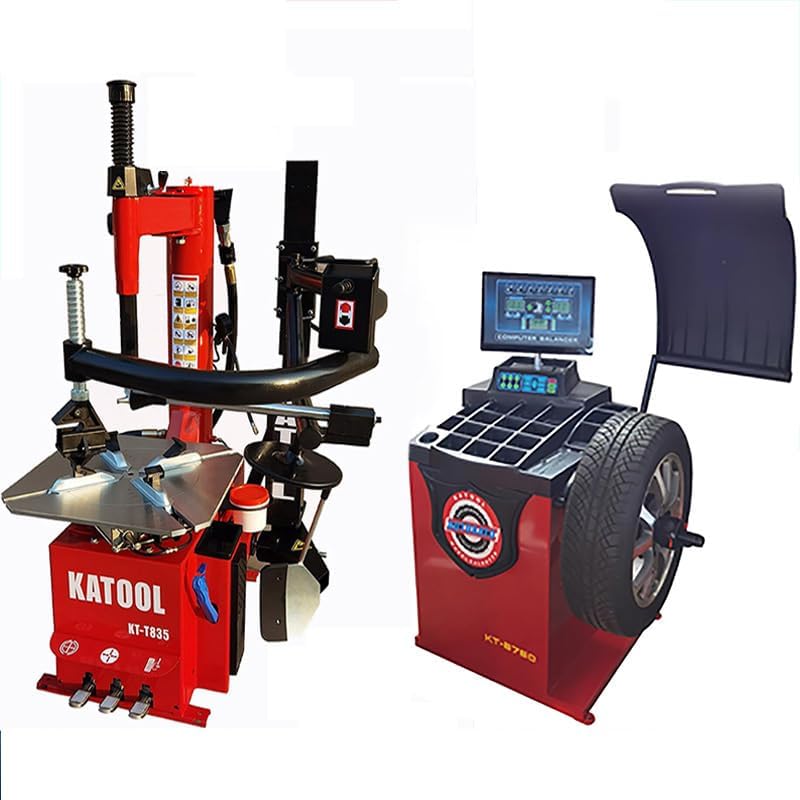

Experience superior tire service with the Katool Tire Changer KT-T835 & Wheel Balancer KT-B750 Combo. The KT-T835 Wheel Clamp Tire Changer features a robust alloy steel jaw with carburization treatment for enhanced strength, a stainless mounting head with protective covers, and a user-friendly pedal control system for efficient and convenient tire handling. The top-level motor with pure copper winding ensures fast heat dissipation and a longer service life, complemented by a high-quality filter for extended pneumatic system life. The KT-B750 Wheel Balancer offers advanced features, including an automatic measurement ruler, all-in-one pressure sensor support, and various balance modes for precise results. With a durable steel body, optional wheel guard, and longer shaft for wider wheels, this combo delivers reliability and efficiency for tire maintenance.
Features
KT-T835 Wheel Clamp Tire Changer Machine
- Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the jaw inside more tenacity and outside more hard, and take the jaw cover for protect rim
- The mounting head is made by stainless, solution treatment and interface polishing, the shape conforms to the engineering principle, with plastic cover for protect rim
- Inflation gauge with pedal control
- With high quality spade cover, effective prevent damage rim
- Pull type pedal control system, convenience for changing and maintenance
- Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life
- With high quality filter, reliable drop oil, effective filter pressure air, and make more longer using life for pneumatic system
- For North America region used 110V/1ph/2.0HP motor ,more strong power and high efficiency working
- Double side assist arm
- Bead blast seater head with post tank
- ?186mm stainless bead breaker cylinder
- Closed body for protect inside parts
KT-B750 Wheel Balancer
- Automatic measurement ruler for auto input A and D values
- The body use 3mm thickness steel, high strength, solid welding, few vibration
- All-in-one pressure sensor support design, bottom board thickness 8mm, side board thickness 8mm, that insure the sensor working stable and high precision
- Top level motor and pure copper winding, more power, fast heat dissipation, low defect rate and longer using life
- The ?36mm shaft thread is by quenching treatment, high strength
- Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life
- The computer board adopt advanced welding technology, moisture proof, dustproof and anti-static electricity, more longer life
- Various balance mode, according different rim for different balance mode, make the balance effect more precision
- Built-in fault diagnosis and self calibration program that double side calibration, no memory parameters, operation more easy
- Unit selection(Ounce/Gram, MM/Inch)
- High quality integration power board, working stable and reliable
- Wheel guard for optional
- Longer shaft for more width wheels
Specifications
KT-T835 Wheel Clamp Tire Changer Machine
|
Max Wheel Diameter :
|
41″/1040mm
|
|
Max Wheel Width :
|
15″/350mm
|
|
Outside Clamp:
|
13″-26″ |
|
Inside Clamp :
|
14″-28″ |
|
Power Supply:
|
110V 1PH/60HZ
|
|
Motor Power:
|
2.0HP/1.5KW
|
|
Rotation Speed :
|
6.1/min |
|
Air Pressure :
|
0.8-1.0Mpa(116-145psi) |
|
Net weight :
|
582lbs |
KT-B750 Wheel Balancer
|
Rim Diameter:
|
<30″
|
|
Wheel Width:
|
3″-12″
|
|
Wheel Diameter:
|
<880mm
|
|
Balancing Speed:
|
180rpm
|
|
Power Supply:
|
120V 1PH
|
|
Motor Power:
|
0.25KW
|
|
Rim Center Hole Dia.:
|
<135mm
|
|
Wheel Weight:
|
<65KG
|
|
Balancing Accuracy:
|
1g
|
|
Measuring Time:
|
7S
|
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
– Cylinders, power units, motors, displays, electronics, etc.
– Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
– Claims must fall within the warranty period.
– Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
– Replacement parts will be provided at no cost, including free shipping.
Note:
– All warranty claims are subject to approval by the warranty/service department.
– Photos and/or videos of defects may be requested.
– Do not disassemble any equipment before the issue is determined.
– Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
– Labor is not included in the warranty.
