iDEAL UTV Frame Lift
- Exclusive wheels free design for the largest UTVs to smallest ATVs.
- Provides SMALL LIFT FOOTPRINT for ADDITIONAL WORKSPACE
- 2,500 lbs capacity
- 43″ RISE HEIGHT (49 w/ rubber lift pads)
- 24″W X 88.9″L PLATFORM SIZE
- 4.75 MIN. HEIGHT
- smooth & rapid 110V Electric / Hydraulic operation

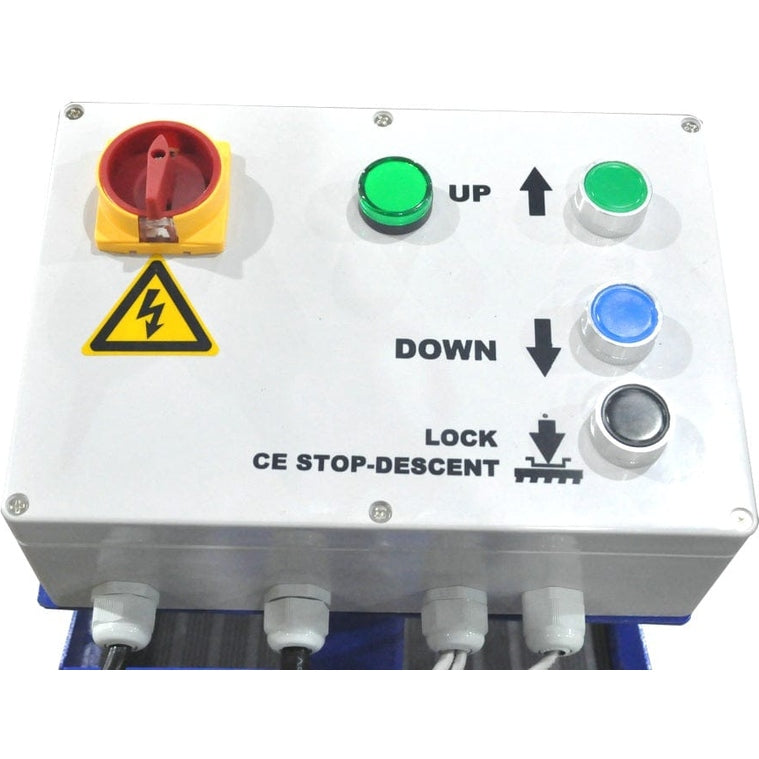

- fully operational control panel W/ ELECTRO-MAGNETIC LOCK RELEASE
- three locking positions
- Heavy-Duty Diamond Plate Platform & extension Construction
- LOAD BEARING HINGED PLATFORM EXTENSIONS
- PORTABLE OR MOUNTED PEDESTAL stand
- Power unit cover w/ storage bin
- RUBBER CONTACT LIFT PADS 4.75 X 6.5 (4EA)
Specifications
| Lift Model | UF-2500EH-X |
| Capacity | 2,500 lbs |
| Min. Height | 4-3/4″ |
| Max Lifting Height | 43″ |
| Overall Length w/ Ramp | 67″ 88-7/8″ |
| Overall Width | 24″ |
| Platform Size (L x W) | 67″ x 24″ |
| Lifting Time | 25S |
| Lowering Time | 25S |
| Power | 110V, 60Hz, 1 PH-18A |
| Ship Weight | 740 lbs |
