Description

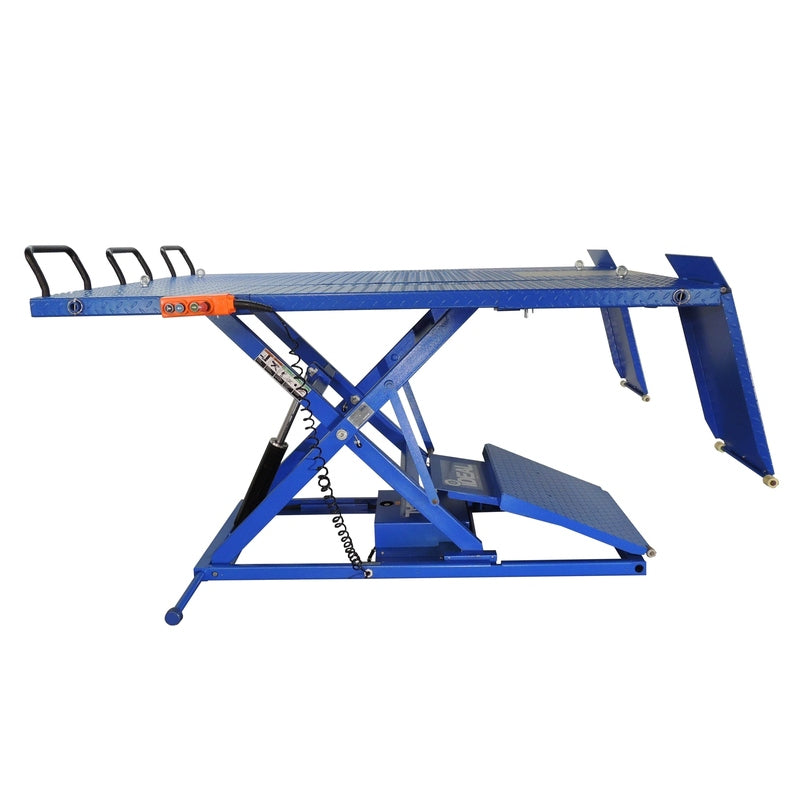

The iDEAL UTV Lift, model U-2200-IEH, with 2,200 lbs. of capacity is designed to lift UTVs and ATVs with ease. The 65 wide table will accommodate Trikes, ATVs and UTVs. The removable UTV side extensions have an integrated fold down access panel to improve technician productivity. We use a 110V electric hydraulic power unit that is built into the lift which provides smooth, safe and quick lifting and lowering. The lift is operated using a simple hand held pendant which raises, lowers into the locks and lowers, which eliminates the need to manually disengage safety latches. The perfect lift for everything from the UTV to the motorcycle. Wheel Chock and Vise Sold Separately.
Features
- NEW! Retractable Ramp System
- 2,200 lbs. Capacity
- 47″ Rise Height
- 110V Integrated Electric/Hydraulic Power Unit
- Single Point Hand Held Control Pendant for Operation and Lock Release
- Six Locking Positions
- Extended 27.5″ Long Full Width Approach Ramp
- Rear Drop Down Service Panel
- Wheel Stops
- 65″ X 88.6″ Table
Specifications
| Capacity | 2,200 lbs. |
| Maximum Lift Height | 47.2″ |
| Minimum Height | 7″ |
| Platform Width | 65″ |
| Platform Length | 88.6″ |
| Power Supply | 110V, 60Hz, 1 Phase, 18A |
| Overall Width Incl. Stabilizer Bar | 65″ |
| Overall Length Including Ramp | 116.5″ |
| Rise Time | 30 Seconds |
| Descent Time | 30 Seconds |
Wheel Chock and Vise Sold Separately.
