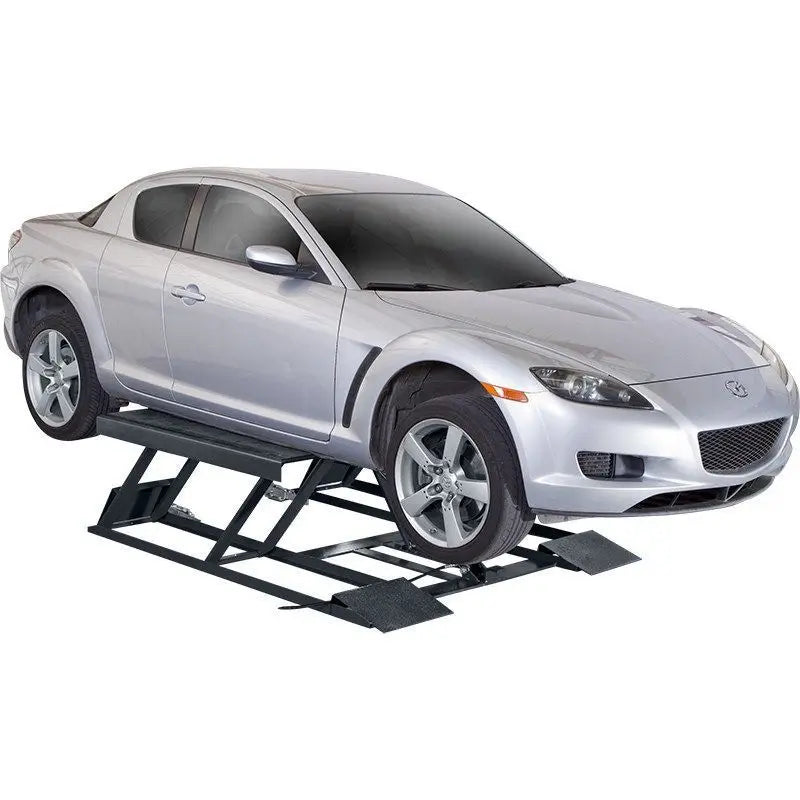

BendPak LR-60P 6,000lb Low-Rise Scissor Lift – Portable

LR-60P 6,000lb Low-Rise Scissor Lift by BendPak

Struggling with limited space and heavy lifting? The BendPak LR-60P 6,000lb Low-Rise Scissor Lift is here to solve both issues in your garage. With a low-profile height of just 4 inches, this lift effortlessly accommodates low-stance vehicles and fits into tight spaces, making it perfect for garages with limited floor area. Featuring a 6,000-lb. lifting capacity, it can handle a range of tasks, from wheel service to suspension work, lifting to a maximum height of 26 inches with optional blocks.

Need to move your lift from one area to another? The LR-60P’s high-density UHMW rollers allow one person to easily move it between service bays. Its heavy-duty steel frame and industrial-grade hydraulic system ensure stable, durable performance, while the smooth electric/hydraulic power system provides seamless operation. The 35-second rise time lets you work quickly and efficiently. With its reliable design and ease of use, the LR-60P ensures you can perform service tasks confidently, even in the tightest spots.

Scissor Lift LR-60P Specification

• Lifting capacity: 6,000 lbs. (2,724 kg)
• Max lifting capacity front/rear axle: 3,000 lbs. (1,361 kg) each
• Max lifting height: 23″ (584 mm)
• Max lift height with 1.5″ blocks: 24.5″ (622 mm)
• Max lift height with optional 3″ blocks: 26″ (661 mm)
• Lowered height: 4″ (102 mm)
• Overall pad length: 53″ (1,346 mm)
• Overall width: 70.5″ (1,791 mm)
• Overall length: 82″ (2,083 mm)
• Lifting time: 35 seconds
• Lift pad dimensions: 18″ x 52″ (457 mm x 2,591 mm)
• Motor: 110 VAC / 50-60 Hz / 1 Ph
• Shipping weight: 974 lbs. (442 kg)
• Shipping dimensions: 73” x 84” x 20” (1,854 mm x 2,133 mm x 508 mm)

LR-60P 6,000lb Low-Rise Scissor Lift Special Features

• Portable design with high-density UHMW rollers for effortless mobility.
• Low-profile height of 4″ for easy clearance under low-stance vehicles.
• Single-point safety release for synchronized dual lock control.
• Dropped crossbar for improved stability and vehicle positioning.
• Heavy-duty steel channel frame for enhanced durability and stability.
• Industrial-grade hydraulic cylinder with precision-engineered piston and seals.
• Solid rubber lift blocks included for secure, damage-free lifting.
• Electric/hydraulic power system for smooth and efficient operation.
• Multi-position safety locks for customizable working heights.
• Compact design ideal for tight spaces or multi-bay garages.

BendPak LR-60P Documentation

  BendPak LR-60P Installation and Operations Manual

  BendPak LR-60P Product Brochure
